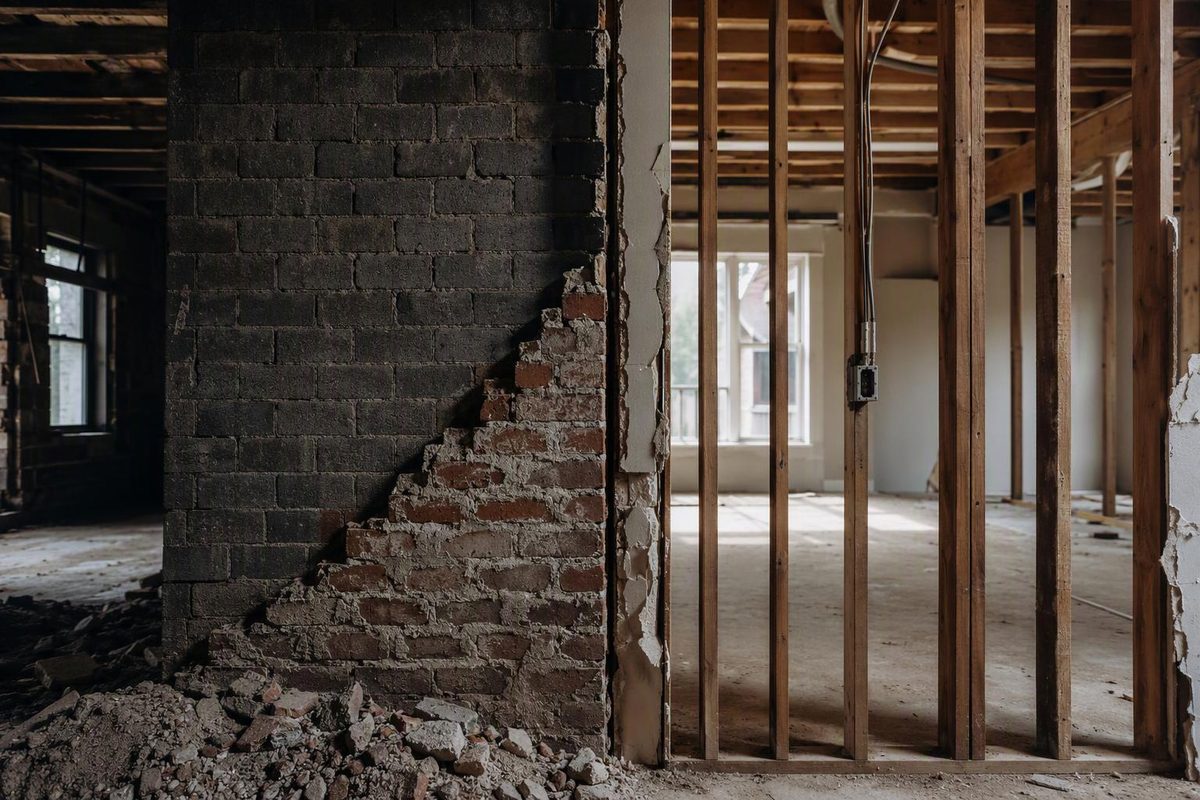

Load-Bearing and Non-Load-Bearing Walls: What Changes in the Structure

The difference between a load-bearing wall and a non-load-bearing wall is its role in the building’s gravity-load path, not its appearance. In structural terms, a load-bearing wall supports part of the building’s framework and transfers those loads toward the foundations. A non-load-bearing wall does not provide that support; another system carries the floors and roof.

Both walls still need support for their own weight. And “non-load-bearing” does not mean “unimportant”: a wall can provide lateral restraint, fire separation or other essential performance without supporting a floor or roof. The International Code Council’s explanation of structural members distinguishes gravity-supporting bearing walls from bracing designed to resist wind or seismic loads.

The main differences

Question	Load-bearing wall	Non-load-bearing wall
What does it support?	Part of the structural framework, such as floor or roof framing, as well as its own weight	Its own wall assembly rather than the floor or roof framework
Where do gravity loads go?	Through the wall and supporting construction below toward the foundations	Floors and roofs use separate bearing walls, beams or columns; the wall’s own weight still reaches its supporting structure
Can it be internal or external?	Either	Either
What controls its detailing?	Loads, height, stability, bearing, connections, openings and required performance	Height, lateral loads, attachments, movement and required fire, acoustic or envelope performance
What happens if it is removed?	Its structural support function must be replaced	Removal may be possible, but other structural and nonstructural functions must first be checked

WoodWorks’ guidance on bearing classification explains that exterior walls can fall into either category. Beams and columns can carry gravity loads in the same plane as an exterior wall while the wall itself acts as non-load-bearing infill.

Formal code classification adds a qualification to this structural comparison. The 2021 International Building Code, as reproduced by WoodWorks, defines a load-bearing wall as a metal or wood stud wall supporting more than 100 pounds per linear foot of vertical load in addition to its own weight, or a masonry, concrete or mass timber wall supporting more than 200 pounds per linear foot in addition to its own weight. These thresholds affect code classification, including fire-resistance requirements; they are not permission to remove a wall carrying a smaller load. Check the code edition and interpretation applicable to the project.

Follow the load, not the material

In a bearing-wall building, a typical gravity-load path is:

Floor or roof → joists, trusses or slabs → bearing wall → supporting wall, beam or foundation below → ground.

In a framed building with non-load-bearing infill, it might instead be:

Floor or roof → beams → columns → foundations → ground.

The infill wall occupies the space between structural members but does not replace them. This distinction determines where support is needed on the drawings and what can change when the plan is altered.

Material alone does not establish the role. Timber and steel studs can form bearing walls; masonry and concrete can also be load-bearing. Conversely, a masonry wall is not necessarily supporting the building. The 2021 IBC definitions reproduced by WoodWorks explicitly address bearing walls made from wood or metal studs, masonry, concrete and mass timber.

For brickwork, distinguish the structural wall from the facing assembly before assessing its role. Our guide to brick veneer assemblies covers that separate support-and-attachment question.

Joist direction is only a clue, not a classification. WoodWorks shows how even framing parallel to an exterior wall can impose tributary floor loads that accumulate over several stories. For an existing building, see how to find out if a wall is load bearing for the investigation sequence. Have its role verified by a suitably qualified structural professional before structural alterations; visible clues alone should not authorize demolition.

What changes when you make an opening?

An opening in a bearing wall interrupts a distributed support line. A lintel or beam collects the loads above the opening and delivers them to its ends. The remaining wall, posts, connections and foundations must then support those reactions—not simply the beam itself. Planning Portal’s structural-support guidance for internal walls in England specifically identifies end supports, foundation load transfer and possible strengthening beneath beam bearings.

Consider an illustrative calculation using assumed loads: a 12-foot simply supported beam carrying a uniform 500 pounds per linear foot receives a total load of 6,000 pounds. Each end reaction is 3,000 pounds, before adding the beam’s own weight or any loads not included in that assumed uniform load.

This is not a sizing example. It shows the change in load distribution when a beam replaces a bearing-wall support line: support previously spread along the wall becomes concentrated at two locations. Adequate beam capacity does not establish adequate post, masonry-bearing or footing capacity. A flush beam may preserve ceiling height but requires a different connection arrangement from a beam below the joists.

Temporary support also needs a design and sequence. The UK Health and Safety Executive’s guidance on structural stability during alterations calls for assessment before altering potentially load-bearing elements and for temporary supports designed, installed and maintained for foreseeable loads.

Non-load-bearing walls still need deliberate detailing

A non-load-bearing partition beneath a deflecting floor or roof may need a movement-accommodating head connection. The purpose is to restrain the wall while allowing the structure above to move without forcing unintended axial load into the partition.

For example, ClarkDietrich’s deep-leg deflection-track guidance requires project-specific design for movement and stud end reactions, and states that the system cannot be used in axial load-bearing stud conditions. There is no universal head gap: movement allowance, stud engagement, fastening and any fire-rated joint must be coordinated for the selected assembly.

Before altering a wall classified as non-load-bearing, check:

• Whether it forms part of the wind or seismic resisting system or restrains adjoining construction.
• Whether it protects an escape route or separates fire compartments.
• Whether it provides acoustic separation or forms part of the exterior envelope.
• What services and supported fixtures must be relocated or reinstated.

Fire performance can be consequential even when gravity support is absent. LABC’s guidance on walls inside flats explains that non-load-bearing walls can protect escape routes, and that penetrations can compromise their fire or acoustic performance. Its approval advice concerns England and Wales; requirements elsewhere depend on the applicable jurisdiction.

On drawings, identify more than “bearing” or “partition.” Show the wall’s structural role, supporting construction, head and base connections, opening details and required performance. That is the information needed to turn a wall classification into a buildable—or safely alterable—assembly.
