How Do You Know if a Wall Is Load Bearing? Trace the Load Path

A wall is load bearing if it supports part of a floor, roof, wall or other structural element above and transfers that load toward the foundation and ground. You cannot confirm that role from the wall’s thickness, material or direction alone. The reliable method is to trace what bears on the wall and what supports it below.

The 2024 International Residential Code (IRC) illustrates why appearance is inconclusive. Its wood-framing provisions address both bearing and nonbearing walls, and familiar 2-by-4 construction can occur in either. The code also treats bearing walls differently when regulating stud size, headers, and drilling or notching (ICC, 2024 IRC Chapter 6).

Start with the structural drawings

If accurate construction or renovation drawings exist, inspect them before opening finishes. Do not rely only on an architectural floor plan. Look for:

• floor- and roof-framing plans showing joist, rafter or truss direction;
• beam, girder, column and footing callouts;
• wall tags identifying bearing, shear or braced walls;
• sections showing where framing members bear;
• truss placement drawings and designated bearing locations; and
• earlier alteration drawings, especially where rooms have already been opened.

Confirm that the drawings match the building. Field changes, additions and undocumented renovations can make an original plan inaccurate.

Inspect above and below the wall

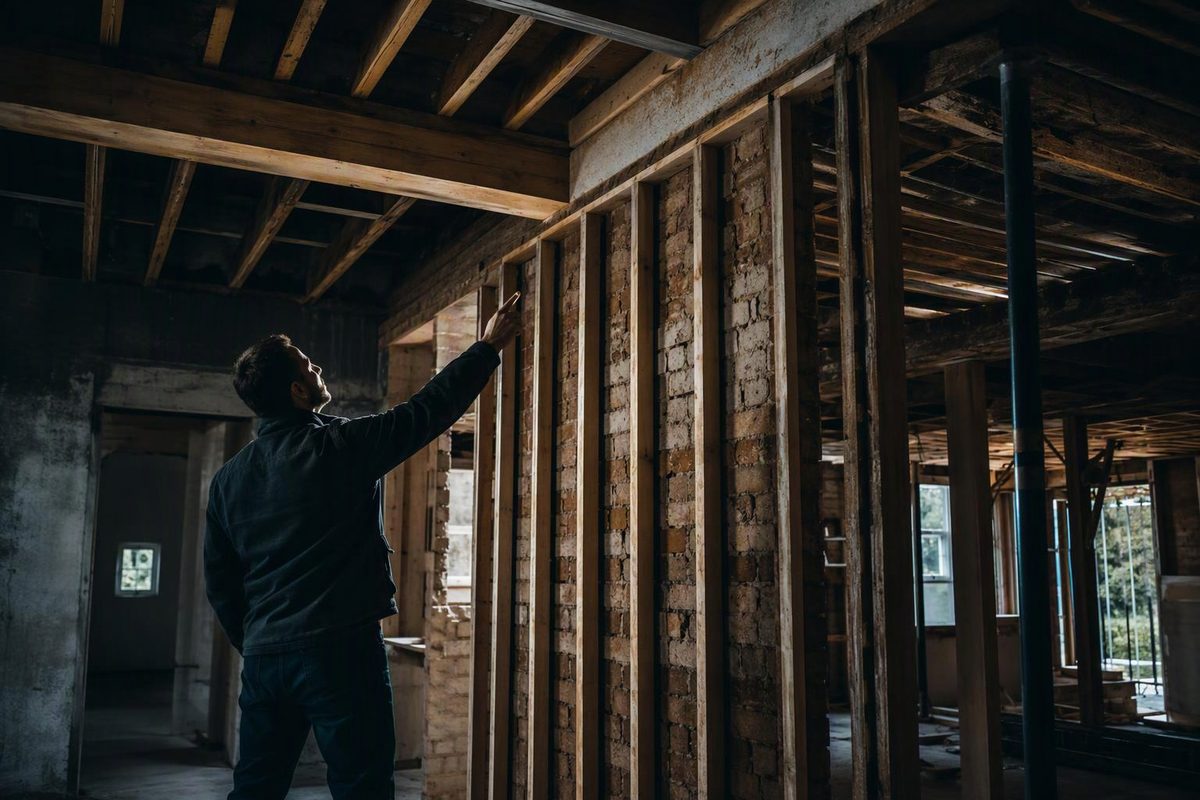

Use an unfinished basement, crawlspace or attic where possible. The goal is to complete this chain:

roof or floor framing → wall → beam, wall, posts or foundation below

Floor joists, ceiling joists and rafters transfer loads through their bearing points to supporting walls and beams (UMass Amherst Building and Construction Technology). A wall is therefore a strong bearing candidate when the ends or intermediate bearing points of those members land on it.

What to check above

1. Find the framing direction. A wall running perpendicular to joists is more likely to support them than one running parallel.
2. Locate joist ends, laps and changes in span. If joists from opposite sides end or overlap over the wall, the wall is probably carrying their reactions. Continuous joists can also use an intermediate wall as a support.
3. Look for a beam landing on the wall. A wall parallel to the surrounding joists may still carry a beam, a concentrated post load or an upper-story bearing wall.
4. Trace walls on the story above. An upper wall may transfer load through the floor assembly to the wall in question. Do not expect every stud and joist to align perfectly: engineered details can redistribute reactions through top plates, floor sheathing, rim boards or other framing (WoodWorks).
5. Inspect the roof system. Conventional rafters, purlins and struts may impose loads on interior walls. Prefabricated trusses may span to exterior walls or use designated interior bearings. Read the truss drawings rather than assuming every wall touching a truss is bearing.

Perpendicular framing is evidence, not proof. Parallel framing is not an automatic clearance. Engineered floors, transfer beams, cantilevers and remodeled framing can create less obvious load paths.

What to check below

Follow the same wall line downward. Strong evidence includes:

• a foundation wall or continuous footing directly below;
• a beam or girder below, particularly one supported by posts;
• another aligned wall on the lower story; or
• piers, columns or thickened foundation areas beneath concentrated loads.

A bearing wall needs support that continues its load path. Building-control guidance likewise notes that its loads must reach an adequate foundation, beam or other supporting structural member (Bath & North East Somerset Council).

Misalignment does not prove the wall is nonbearing; plates, rim boards, blocking or beams may transfer load to supports that are not perfectly aligned. Conversely, a partition directly above a basement beam is not necessarily bearing. What matters is whether framing above actually bears on it.

Treat framing details as clues, not tests

Clue	What it may indicate	Why it is not conclusive
Joists end or lap over the wall	Direct floor support	Finishes may conceal a beam or another framing arrangement
Wall is perpendicular to joists	Possible intermediate support	Joists may span across without bearing there
Wall is parallel to joists	Often a partition	It may support a beam, upper wall or concentrated load
Header with jack studs	Load is being carried around an opening	Nonbearing openings can also have substantial framing
Double top plate	Conventional wall framing	It is not proof that framing above bears on the wall
Masonry or concrete construction	Possible vertical support	Masonry may instead be veneer or a nonbearing partition
Exterior location	Common floor or roof bearing line	Some gable-end and curtain walls carry little or no gravity load from framing above
Wall continues through several stories	Possible continuous load path	Partitions may stack for planning or service coordination

A header is meaningful only when its load can be identified. Headers collect loads above an opening and redistribute them to adjacent studs; their required depth depends on the opening width and supported structure (American Wood Council). A doubled member over a doorway does not by itself establish what the wall carries.

Tapping drywall, judging whether a wall “sounds solid,” measuring its thickness or finding studs at 16 inches on center does not establish structural function.

“Non-load-bearing” does not necessarily mean removable

Gravity support is only one possible role. A wall can resist wind or earthquake forces as a shear wall or part of a braced wall line. Sheathing, fastener patterns, anchors and connections to floors and roofs may form part of that lateral system. The 2024 IRC includes braced-wall requirements and provisions for a continuous uplift load path from certain braced panels toward the foundation (ICC, 2024 IRC Chapter 6).

A wall may also form part of a fire-resistance-rated assembly, protect a stair or exit route, separate dwelling units, or contain plumbing, gas, electrical and HVAC services. Building-control guidance specifically warns that some internal walls protect stairways for escape even when the issue is not gravity support (Building Control Partnership). Those functions can govern whether and how the wall is altered.

Verify the wall before cutting or removal

If the project involves cutting studs, enlarging a doorway or removing the wall, have a structural engineer or another design professional authorized for that work in the project’s jurisdiction verify the load path. The design should address more than the replacement beam:

• existing loads and framing spans;
• the beam or header;
• end posts and connections;
• bearing at each end;
• the capacity of the floor, beam, footing or foundation below the posts;
• lateral-load and fire-resistance functions; and
• temporary support and construction sequence.

Replacing a uniformly loaded wall with a beam changes the load distribution. The beam collects the load and sends larger reactions into its ends. New posts may therefore need reinforcement or new footings even when the beam itself is adequate. Beam selection should follow the same load, span and bearing logic used for a window lintel, not stock length or depth alone.

Permit requirements are local. York County, Virginia, for example, lists moving, adding or removing walls—bearing or not—as work requiring a building permit (York County permit guidance). Chicago’s nonstructural interior permit does not cover alteration of load-bearing walls, beams, joists, trusses or work requiring shoring (Chicago Department of Buildings). Check the authority having jurisdiction before work starts.

Use framing direction and alignment to identify likely bearing walls, but do not cut based on clues. Confirmation requires a complete, physically plausible load path above and below the wall, plus a check for lateral, fire-protection and service functions that an alteration could disturb.
