How to Build Usable Outdoor Space Above a Low-Slope Roof

By Clara Voss · 2026-08-08

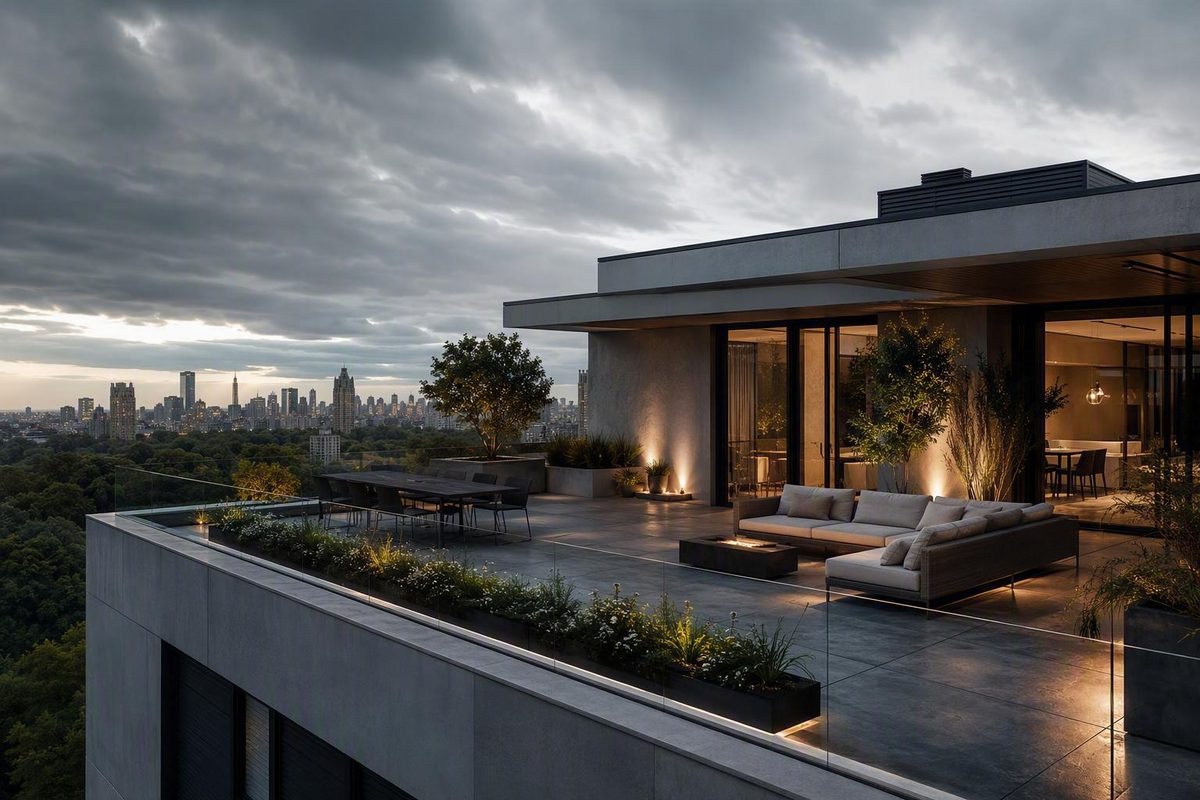

A flat roof deck can turn roof area into seating, a terrace, a garden, or another outdoor amenity. But it is not conventional decking installed at a higher elevation. It is an occupied-roof assembly over conditioned or otherwise protected space, where defects can affect the rooms and structure below.

The visible finish is only one component. Structure, drainage, waterproofing, load distribution, wind resistance, edge conditions, guards, access, and maintenance must work together. The governing principle is simple:

The walking surface and its supports must not defeat drainage, damage the membrane, or prevent inspection and repair.

This article is a planning and coordination framework, not a project specification, engineered detail, or jurisdiction-specific code analysis. Requirements vary with the building, location, occupancy, roof geometry, exposure, selected products, and local authority. A licensed design team must verify the applicable structural, life-safety, accessibility, fire, energy, and permitting requirements.

What a Roof Deck Is—and Why the Roof Beneath It Is Not Truly Flat

A flat roof deck is an occupied walking surface built over a nominally flat or low-slope roof. It differs from a ground-level deck because the construction beneath the walking surface is part of the building envelope. Water passing through or around the finish must still be collected and directed safely away from the building.

“Flat” describes the roof’s appearance more than its drainage geometry. The waterproofing plane normally slopes toward drains, scuppers, gutters, or roof edges, even when the pavers or boards above it appear level. C.W. Architects explains that low-slope roofs may use tapered insulation over nominally level framing to create drainage beneath an apparently level roof profile as part of a coordinated roof-deck assembly.

That arrangement creates two surfaces with different jobs:

The primary roof is the continuous waterproofing and drainage system protecting the building.
The walking surface is the traffic-bearing finish that provides the desired appearance and can often be removed or replaced.

In a protected assembly, the upper surface may consist of concrete or porcelain pavers, wood, composite boards, aluminum, natural stone, or another approved system. Water passes through open joints or board gaps and then flows across the concealed membrane. The finish should not be mistaken for the roof itself.

A product approved to function as both waterproofing and a pedestrian wear surface is an exception in form, but not in principle. It must still connect reliably to drains, flashing, walls, doors, edges, and penetrations as part of a complete roof assembly.

Low-slope roofs generally depend on continuous membranes because water moves away more slowly than it does on a steep roof. Shingles and similar overlapping materials principally shed water downhill. At low slopes, the roof needs a continuous barrier capable of controlling slower and potentially multidirectional water movement.

Possible uses include seating, dining, circulation, planting, or recreation. None is automatically permissible merely because the roof can be reached. A roof designed for weather protection and occasional maintenance access may lack the structural capacity, guards, exits, accessibility, or legal occupancy status required for routine use.

The first design question is therefore not which paver or deck board looks best. It is whether an occupied assembly can be created without compromising the building.

Start With Feasibility: Structure, Existing Conditions, and Intended Use

A roof-deck project usually follows one of three paths:

New construction: Structure, drainage, access, guards, waterproofing, and finishes can be coordinated from the outset.
Conversion of a sound existing roof: The existing structure and roof may remain, but their capacity, condition, drainage, and details must be verified before concealment.
Remediation before conversion: A leaking, saturated, poorly sloped, or deteriorated roof must first be diagnosed and repaired or replaced.

These paths should not be blended casually. Installing a walking surface over an unidentified leak can hide evidence, delay corrective work, and make the eventual repair more disruptive.

Define the use before calculating loads

The intended activity shapes the design. A private residential sitting area is not equivalent to a restaurant terrace, shared multifamily amenity, garden, or event space. Establish anticipated occupancy, furniture layout, circulation, planting, shade structures, utilities, storage, and seasonal use before selecting materials.

A licensed structural engineer should compare the capacity of the existing building with the loads created by occupied use. The review should address:

Permanent roof and deck components
Occupants and movable furniture
Planters, wet soil, water features, storage, and equipment
Pergolas, screens, lighting supports, or shade structures
Applicable snow, drifting, rain accumulation, and other environmental loads
Concentrated reactions beneath pedestals, sleepers, posts, curbs, and equipment
The complete load path through the structural deck, framing, walls, columns, and foundations

A roof that safely supports maintenance workers is not necessarily suitable for regular occupancy. Hoffmann Architects + Engineers cautions that adding paving does not establish that an existing roof is safe for an occupied terrace; existing capacity must be compared with the proposed use, furnishings, and other added loads through project-specific structural review.

The installed weight matters more than a catalog description such as “lightweight.” Include supports, pads, trays, grids, edge restraints, planters, retained water, and all other permanent components. A lighter finish may reduce dead load, but it can still create concentrated reactions or require additional wind restraint.

Expose and inspect the existing roof

An existing roof should be evaluated before it disappears beneath new work. Inspection should address:

Membrane condition and remaining serviceability
Seams, laps, terminations, and previous repairs
Flashing at walls, parapets, curbs, edges, and doors
Primary drains, scuppers, gutters, and overflow routes
Penetrations and equipment supports
Substrate firmness and evidence of deflection
Insulation condition and indications of trapped moisture
Ponding, staining, biological growth, corrosion, or soft areas
Compatibility with the proposed protection and support system

Existing pavers, tiles, or wood decking may need to be removed for a meaningful assessment. A roof seen only through scattered gaps cannot reveal the full condition of concealed seams, insulation, substrate, or drainage paths. DRYLOK’s rooftop-deck guidance, which is directed primarily at masonry substrates and coating applications, likewise recommends removing overlays where necessary so the underlying surface can be inspected, prepared, and sealed before waterproofing work proceeds.

Do not assume that a new coating can cure an unidentified leak. Determine whether water is entering through the field membrane, flashing, drains, walls, doors, penetrations, or another building component. Soft substrate, widespread moisture, persistent ponding, or extensive deterioration may justify replacement rather than another covering layer.

Identify the review path early

Residential and commercial projects may present different questions concerning occupancy, public access, accessible routes, fire performance, exits, guards, lighting, signage, and operations. Local authorities may also distinguish among roof replacement, exterior alteration, and creation of new occupied space.

Treat these as questions for the design team and authority having jurisdiction:

Does the proposed use change the legal occupancy of the roof?
What permits and submitted drawings are required?
What occupant limits, exits, guards, or accessible routes apply?
Do material fire-performance requirements limit the finish or support system?
Will insulation changes affect energy compliance or existing details?
What provisions apply to construction and maintenance access?

Do not postpone this review until products have been selected. Stairs, doors, guards, and accessible transitions can demand more space and structural work than the finish itself.

Go/no-go checklist

Proceed to detailed design only when the team can answer “yes”—or define a realistic corrective path—for each item:

[ ] Structural capacity can be documented or upgraded.
[ ] The structure and roof substrate are sound or repairable.
[ ] The membrane can be inspected sufficiently to assess its condition.
[ ] Positive drainage and any required overflow route can be maintained.
[ ] Vertical clearance is sufficient for the complete assembly.
[ ] Door, threshold, and flashing conditions can be resolved.
[ ] Safe access, egress, and guards can be provided where required.
[ ] Wind and fire constraints have been identified.
[ ] The permitting and compliance path has been established.
[ ] Drains, utilities, and likely repair areas will remain accessible.

A “no” does not necessarily end the project. It may mean that reinforcement, new drainage, raised doors, reconstructed parapets, or full roof replacement must precede the deck.

Anatomy of a Protected Roof-Deck Assembly

There is no universal layer sequence. The following is one conceptual conventional arrangement, shown from bottom to top:

Structural roof deck or framing
Sheathing or substrate, where applicable
Required air, vapor, and thermal-control layers
Flat or tapered insulation
Cover board or another approved protection layer
Waterproof roofing membrane
Compatible pads, pedestals, sleepers, trays, or subframing
Removable walking surface

This list is not a specification. Attachment, sequencing, material type, and layer placement must be established through the approved roof design.

In a conceptual inverted or protected-membrane arrangement, the membrane lies closer to the structural deck, with drainage and insulation components above it before the supports and walking surface. Conventional and inverted assemblies are not interchangeable. Products suitable for one arrangement should not be moved into another without an approved system design.

Slope, insulation, and load distribution

Drainage slope can be formed in the structure or created with tapered insulation. Crickets and saddles may redirect water around curbs and toward outlets. The membrane can therefore change elevation while adjustable supports above it create the desired walking plane.

A cover board may provide a firmer membrane substrate, protect softer insulation, and contribute to load distribution. It does not by itself prove that concentrated pedestal or sleeper reactions are acceptable. Those reactions must be checked through the complete support, pad, membrane, cover board, insulation, structural deck, and framing assembly.

Board type, thickness, compressive properties, fastening, and compatibility should be selected as part of the roof system rather than treated as generic accessories.

How open-joint pavers drain

Pedestal-supported pavers normally have open joints. Rain passes between units, reaches the concealed membrane, and follows the membrane slope to the outlets. Because support heights can vary, the upper surface does not have to reproduce every change in the roof’s elevation.

The cavity beneath the finish is functional infrastructure. It carries water and may accommodate approved utilities. Supports, cables, pipes, trim, and debris must not interrupt the intended flow path.

Pavers or deck panels should be liftable at:

Drains and strainers
Cleanouts
Utilities and service routes
Selected membrane seams
Penetrations
Wall and door transitions
Areas anticipated to require repair

A finish that can be removed only by cutting or destroying large areas forfeits a major benefit of a protected roof-deck assembly.

Conceptual cutaway diagram

       LEVEL OR GENTLY GRADED WALKING SURFACE
   ┌──────────┐  open joint  ┌──────────┐
   │  paver   │      ↓       │  paver   │   removable
   └────┬─────┘              └────┬─────┘
        │ adjustable supports     │
      [compatible protection pads]
   ───────────────────────────────────
            WATERPROOF MEMBRANE
          ↘       ↘       ↘ water flow
   ═══════════════════════════════════
      TAPERED INSULATION / PROTECTION
   ───────────────────────────────────
         STRUCTURAL ROOF DECK
                    ↓
              supporting framing

                    → primary drain or scupper
                    → overflow route where required

A project drawing should also show a door, wall, parapet, or roof edge; flashing and terminations; drain sumps; overflow openings; removable elements; and arrows tracing water from the walking surface to final discharge. The design professional should verify the final detail rather than relying on this conceptual diagram.

Allow for vertical buildup

Insulation, supports, and finishes can consume significant height. Added elevation can affect:

Door sills and interior transitions
Flashing and membrane terminations
Guard and parapet geometry
Scuppers and overflow openings
Roof curbs and equipment clearances
Accessible routes
Edge metal and gutters

These conflicts are easiest to resolve in section drawings. Once doors, parapets, drains, and curbs are fixed, there may be too little space for the preferred assembly.

Waterproofing Strategies: Exposed Walkable Membrane or Protected Roof

Flat roof decks use two broad waterproofing strategies. The appropriate choice depends on the complete assembly rather than the generic membrane name.

1. A membrane approved as the pedestrian finish

In this approach, one product performs as both the primary waterproofing and exposed wear surface. The claim must be verified for the exact product; it should not be inferred from the term “PVC.”

The waterproof surface remains visible for inspection. In exchange, furniture, traffic, cleaning, sunlight, and falling objects act directly on the membrane, and finish repairs are also waterproofing repairs.

Before specifying a combined system, verify:

Roofing approval for the substrate and building type
Explicit approval for the intended pedestrian exposure
Required slope and drainage details
Substrate preparation and smoothness requirements
Seam, edge, corner, drain, and penetration details
Relevant slip and fire documentation
Installer qualification and inspection requirements
Cleaning and repair procedures
Warranty exclusions concerning traffic, furniture, ponding, or misuse

Duradek, for example, describes particular PVC products as combined roofing membranes and pedestrian surfaces while distinguishing them from standard BUR, modified-bitumen, and EPDM roofs that generally require an additional walking or protection layer for occupied use in its manufacturer guidance. That is a system-specific manufacturer claim—not evidence that all PVC is walkable or that PVC is universally preferable.

2. A membrane beneath a separate walking surface

A protected system places pavers, boards, panels, tiles, or another wear layer above the waterproofing. The finish absorbs routine traffic and may be replaceable without replacing the roof.

This approach offers broader finish choices and protects the membrane from direct pedestrian wear. It also adds depth and weight, creates concentrated support reactions, and conceals the waterproof surface. Removability and planned inspection access are therefore essential.

Membrane categories encountered in these assemblies include:

PVC
EPDM
TPO
Modified bitumen
Built-up roofing
Other sheet systems
Liquid-applied systems

A category is not a specification. Products within the same category can have different reinforcement, seam methods, substrate requirements, traffic limitations, flashing components, and compatibility rules.

Sheet and liquid-applied systems

Sheet membranes create a continuous barrier from factory-made material. Performance depends on the field installation of seams, laps, corners, drains, transitions, penetrations, and terminations.

Liquid-applied systems can conform to complex geometry and may reduce the number of sheet seams, but they still require a compatible substrate, prescribed preparation, specified cured thickness, and product-specific application conditions. Temperature, moisture, reinforcement, mixing, and cure requirements cannot be generalized from the phrase “liquid membrane.”

A standard roof membrane should not receive routine pedestrian traffic unless its manufacturer approves that exposure. Construction access, occasional maintenance, designated walkways, and full-time occupied use are different service conditions.

Comparison of the two strategies

Criterion	Exposed walkable membrane	Protected membrane beneath finish
Assembly depth	Often lower	Usually greater
Appearance	Limited to approved membrane finishes	Broader choice of pavers, boards, and panels
Traffic exposure	Waterproofing receives direct wear	Finish absorbs most routine traffic
Inspection	Membrane is visible	Finish must be lifted
Finish replacement	Usually involves membrane work	Individual finish units may be replaceable
Detailing	Transitions remain exposed and critical	Supports, edges, and access add coordination
Dead load	Generally less finish weight	Added finish and support weight
Wind review	Exposed sheet and edges need approved attachment	Modular or loose units may require restraints
Compatibility	Cleaners, furniture, and traffic matter	Pads, supports, adhesives, and finishes matter

Neither strategy is universally best. Available height, climate, traffic, substrate, appearance, wind exposure, installer capability, repair strategy, and adjacent construction should drive the choice.

Waterproofing documentation checklist

Obtain and review:

[ ] Current technical data sheet
[ ] Complete installation manual
[ ] Applicable approval or evaluation report
[ ] Pedestrian-use approval where relevant
[ ] Written compatibility for insulation, boards, pads, supports, adhesives, and flashing
[ ] Relevant test reports and the conditions under which they apply
[ ] Substrate preparation requirements
[ ] Installer qualification requirements
[ ] Inspection or testing procedures
[ ] Approved cleaners and maintenance instructions
[ ] Repair details
[ ] Complete warranty, including exclusions

Reliable performance comes from a documented assembly, compatible interfaces, qualified installation, and continued maintenance—not from selecting a membrane by material name alone.

Choosing the Support System and Walking Surface

The support system separates the waterproof roof from the walking surface. It must carry loads without puncturing or abrading the membrane, preserve drainage, accommodate movement, resist instability, and allow access.

Adjustable pedestals

Adjustable pedestals support pavers or approved panels at varying heights. They can create a level walking plane over an independently sloped roof and accommodate elevation changes or approved services.

Potential advantages include dry installation, replaceable units, and access beneath the finish. Risks include concentrated reactions over insulation, rocking or settlement, membrane abrasion, inadequate clearance, lateral movement, and wind uplift.

Wide bases and protection pads may spread loads, but suitability must be confirmed for the actual membrane, insulation, cover board, and structural deck. “Non-penetrating” does not mean risk-free; pressure and repeated movement can still damage waterproofing.

Fixed low-profile supports

Fixed supports suit areas with limited buildup or little need for elevation adjustment. Approved shims may correct small differences. These supports are simpler than adjustable pedestals but provide less capacity to compensate for changing roof elevations.

They still require verification of contact materials, drainage clearance, structural reactions, paver stability, and perimeter control.

Protected sleepers

Wood or composite boards can be assembled into removable panels over sleepers. Sleepers should rest on compatible protection strips or pads and run in a direction that does not dam water. Cross-bracing, panel frames, and trim must preserve the same drainage routes.

The problem is not the mere presence of sleepers. It is poor execution: abrasive contact, trapped debris, blocked water paths, unstable support, or permanently fastened construction that makes the roof inaccessible. BuildingAdvisor recommends removable deck sections over protected sleepers oriented with the roof slope so water and debris can pass beneath them rather than being trapped behind the sleepers.

Trays, grids, and subframes

Some finish units cannot safely span between conventional pedestal heads. Natural stone, wood tiles, and composite units may require a grid or supplementary framing, depending on their properties and the selected system.

It also requires a defined edge condition and wind-resistance strategy. Archatrak’s system guidance identifies roof load, drainage slope, fire constraints, deck height, membrane protection, and perimeter restraint as linked considerations and notes that some stone, wood, and composite units require additional support rather than corner pedestals alone.

Mechanically restrained assemblies

Interconnected tracks, restrained trays, or mechanically secured finishes can address movement and uplift. Their attachment points must be coordinated with the structure and waterproofing.

Any fastener passing through the roof requires a designed load path and a compatible flashing detail. Fastening only to trim or finish components does not establish that structural loads reach the building safely.

Walking-surface tradeoffs

Surface	Principal design considerations
Concrete pavers	Robust and individually replaceable, but potentially heavy; verify structure, weather exposure, fire requirements, and wind design
Porcelain pavers	Often thinner and lighter than concrete alternatives; require adequate structural strength and compatible edge, tray, or pedestal support
Wood	Warm appearance and adaptable to removable panels; may weather, warp, split, splinter, or require refinishing; fire restrictions may apply
Composite	Consistent appearance and reduced refinishing compared with many woods; thermal movement, heat, support spacing, fire performance, and product limitations remain relevant
Aluminum	Relatively lightweight and weather resistant; requires coordinated supports, slip review, acoustic control, edge details, and compatible connections
Natural stone	Distinct appearance but variable strength and weight; may require a grid or subframe

A heavy finish may exceed the available roof capacity. Neither weight alone nor material reputation establishes suitability.

Support-system decision matrix

Project condition	Systems to investigate	Questions to resolve
Very limited height	Walkable membrane or fixed low-profile supports	Can doors, flashing, and drainage still work?
Variable membrane elevations	Adjustable pedestals	Is the adjustment range sufficient and stable?
Limited structural capacity	Lightweight boards, panels, or pavers	What are the total dead load and support reactions?
Frequent drain or utility access	Removable pavers or modular panels	Can access units be lifted safely without demolition?
Restrictive fire conditions	Documented compliant finishes and supports	Does the complete assembly meet project requirements?
High maintenance tolerance	Wood or another finish requiring periodic care	Can refinishing occur without harming the roof?
Low maintenance tolerance	Replaceable, weather-resistant units	What cleaning and inspection remain necessary?
High wind exposure	Restrained, interlocking, tray-based, or engineered system	What calculations, testing, and edge details apply?
Premium finish objective	Porcelain, stone, wood, aluminum, or composite	Is the finish approved for the selected support system?

Obtain written confirmation that pads, pedestals, sleepers, shims, adhesives, trays, grids, and finishes are compatible with the membrane.

Drainage, Thresholds, Flashing, Guards, and Penetrations

The complete drainage path should be traceable:

Water runs off or passes through the walking surface.
It enters the cavity through joints, gaps, or designated openings.
It reaches the sloped waterproofing plane.
It moves around supports, curbs, and penetrations.
It enters primary drains, scuppers, gutters, or roof edges.
A secondary route provides overflow drainage where the project requires it.

Supports, sleepers, edge trim, planters, rugs, furniture bases, and utilities must not interrupt this route. Drain covers should never be permanently buried beneath fixed construction.

Coordinate every boundary

Critical interfaces include:

Exterior doors and thresholds
Walls and parapets
Roof edges, fascia, and gutters
Scuppers and overflow openings
Drain sumps and strainers
Equipment curbs and supports
Pipe, duct, and electrical penetrations
Expansion or control joints
Transitions between walking-surface systems

BuildingAdvisor recommends at least 1/4 inch of roof slope per foot and a finished walking surface at least 1-1/2 inches below the interior floor as general expert guidance for rooftop decks over living space rather than as universal dimensions. Actual slope, threshold geometry, flashing height, drainage capacity, and accessible transitions must follow the project design, applicable requirements, and manufacturer instructions.

Thresholds are particularly difficult because drainage, waterproofing, access, and interior-floor alignment converge there. It should not be created by simply raising the finish against an unmodified door.

Flashing and material compatibility

Membranes, flashing, primers, adhesives, and sealants must be mutually compatible. A detail that appears continuous on paper can still fail if materials do not bond, move differently, or adversely interact.

Use the membrane manufacturer’s transition components or obtain written approval for alternatives. Drawings and submittals should identify responsibility where roofing meets glazing, sheet metal, masonry, doors, or guard attachments. Scope gaps at these interfaces can be as consequential as defects in the field membrane.

Guards and penetrations

Railing posts, equipment mounts, pergolas, screens, shade structures, and lighting supports create loads that must reach the building structure. If they pass through the roof, they also create high-risk waterproofing locations.

Common guard concepts include:

Fascia or edge attachment: May avoid a field penetration but can conflict with gutters, edge metal, structural depth, or appearance.
Parapet attachment: May keep work away from the horizontal membrane but requires a structurally adequate parapet and coordinated coping.
Flashed roof penetration: May offer a direct load path but requires a raised, compatible, maintainable waterproofing detail.

No option is universally acceptable. Avoiding a penetration may transfer the difficulty to the fascia, parapet, gutter, edge flashing, or structural framing. The architect, structural engineer, and waterproofing designer should resolve the consequences together.

Show lift-out zones at every drain and selected access points at seams, penetrations, wall transitions, and other likely repair areas.

Wind, Fire, Access, and Code Coordination

A walking finish does not by itself make a roof safe, accessible, or legally occupiable. Roof-deck review may involve structure, life safety, accessibility, energy performance, worker protection, and the building envelope.

Because requirements vary, use the following as a coordination checklist rather than a statement of universally applicable rules:

[ ] Required building and trade permits
[ ] Structural calculations and sealed details where applicable
[ ] Occupancy classification and occupant limits
[ ] Guards, handrails, and opening limitations
[ ] Safe access and required exits
[ ] Accessible routes and threshold transitions
[ ] Fire performance of finishes and supports
[ ] Lighting and exit signage where applicable
[ ] Effects of insulation changes on energy compliance
[ ] Primary and overflow drainage provisions
[ ] Construction and maintenance fall protection
[ ] Wind design for finishes, screens, furniture, and accessories

A private residential project and a shared or commercial amenity should not be presumed to follow the same review path. Building type, height, occupancy, public access, location, and scope can change the applicable questions.

Wind demand varies across the roof

Wind uplift depends on location, building height, exposure, roof geometry, parapet conditions, and the position of components on the roof. Interior, perimeter, and corner zones can experience different demands, with perimeters and corners commonly requiring greater resistance.

Potential project-specific responses include:

Perimeter restraints
Interlocking components
Security trays
Mechanically connected grids
Designed ballast
Attachment through approved structural and waterproofing details
Another engineered system

Paver weight alone does not demonstrate adequate wind resistance. Hoffmann Architects + Engineers identifies building height, exposure, parapet conditions, location, and roof geometry as relevant variables and notes that uplift pressures are generally greatest at roof perimeters and corners.

Wind review should include furniture, umbrellas, screens, planters, access panels, and partially lifted or displaced units—not only the primary deck finish.

Fire performance belongs to the assembly

Wood, composite, rubber, porcelain, concrete, aluminum, and other finishes behave differently when exposed to heat and flame. Suitability may also depend on the support system, underlying roof, covered area, setbacks, nearby construction, and building use.

Do not treat a marketing phrase such as “fire resistant” as proof of compliance. Request applicable test documentation, classification, assembly conditions, and limitations for the exact product and configuration. Apply the same discipline to slip, structural, weathering, and wind claims.

Assemble the right team

A flat roof deck may require:

An architect to coordinate use, access, interfaces, permits, and assembly design
A structural engineer to verify loads and attachments
A qualified roofing or waterproofing contractor
The membrane manufacturer or technical representative
A system-approved installer
Accessibility, fire, wind, or code specialists where conditions warrant

Responsibilities at trade boundaries should be explicit. A railing installer should not penetrate completed roofing without an approved detail; a deck installer should not block a scupper; and a door installation should not consume required waterproofing space.

Construction Sequence, Inspection, and Long-Term Maintenance

A flat roof deck over protected space is not an appropriate trial-and-error project. Waterproofing, structural attachments, penetrations, and system interfaces should be installed or supervised by qualified professionals following the selected manufacturers’ instructions and project documents.

Recommended construction sequence

Complete design and approvals. Resolve structure, drainage, waterproofing, insulation, guards, wind, fire, access, and finish selection.
Document existing conditions. Photograph surfaces, edges, outlets, penetrations, cracks, repairs, and interior evidence of leakage.
Remove obstructing finishes. Expose enough of the roof and substrate for a reliable assessment.
Repair structure and substrate. Correct deterioration, deflection, unsuitable sheathing, damaged concrete, and other defects.
Establish drainage. Form the designed slopes, crickets, sumps, primary outlets, and overflow routes.
Install insulation and protection layers. Follow the approved assembly and attachment design.
Install waterproofing. Complete seams, drains, corners, transitions, penetrations, and terminations.
Inspect and test before concealment. Use the quality-control method specified for the selected system.
Complete flashing and penetration work. Do not defer guard, curb, threshold, or edge details until after the finish is placed.
Install compatible pads and supports. Verify reactions, elevations, stability, clearances, and drainage.
Install the removable walking surface. Preserve planned joints and access zones.
Stabilize edges and wind zones. Add the designed restraints, trays, connections, or other components.
Perform final inspections. Check drainage, guards, transitions, finish stability, access, and safety items.

Before concealment, record product names, relevant batch or roll information, seam locations, drain positions, penetration details, and inspected or tested areas.

Handover checklist

The owner or facility manager should receive:

[ ] Roofing and walking-surface warranties
[ ] Installer and inspector credentials
[ ] Product data and installation records
[ ] As-built roof and drainage drawings
[ ] Photographs of concealed work
[ ] Approved cleaning products and methods
[ ] Maintenance obligations and warranty exclusions
[ ] Instructions for lifting and replacing finish units
[ ] Sources for replacement pavers, boards, pads, and supports
[ ] Procedures for reporting and responding to leaks
[ ] Contact information for qualified repair contractors

Build a condition-based maintenance plan

No single inspection interval suits every roof deck. Frequency should reflect the membrane, exposure, building height, nearby trees, traffic, climate, drainage arrangement, and warranty requirements. Additional inspection is appropriate after severe weather, unusual loading, contractor access, furniture movement, or work by other trades.

Inspection targets include:

Blocked drains, scuppers, gutters, and overflow outlets
Ponding or unusually slow drainage
Loose, cracked, or rocking pavers
Shifted boards or opened joints
Perimeter movement or displaced restraints
Damaged flashing or sealant
Open seams, blisters, or visible membrane damage
Abrasion or displaced pads beneath supports
Debris trapped under the finish
Deterioration around penetrations and curbs
Corrosion at metal supports or attachments
Guard movement or loose connections

Periodically lift removable pavers or deck sections at drains and selected inspection points. Surface sweeping cannot reveal concealed debris, blocked flow paths, abrasion, or displaced supports.

Record cleaning, repairs, replacements, professional inspections, and storm damage. This history supports better maintenance decisions and may be relevant to warranty obligations.

Recurring leaks, soft substrate, persistent ponding, displaced finish units, cracked pavers, failed seams, corrosion, guard movement, or visible membrane damage warrant professional investigation. Do not conceal the symptom beneath another coating or finish layer.

Frequently Asked Questions

Can an existing flat roof be converted into a deck?

Possibly, but conversion is not established by installing pavers or boards. A structural engineer should evaluate the proposed assembly, occupants, furniture, planters, environmental loads, and concentrated reactions beneath supports.

The roof must also be exposed sufficiently to inspect its membrane, insulation, substrate, flashing, drains, and penetrations. Persistent leaks, soft areas, trapped moisture, or poor drainage should be diagnosed before new work conceals them.

A viable conversion also requires sufficient vertical clearance, workable threshold and flashing details, safe access, guards where required, wind resistance, maintenance access, and an identified approval path. Reinforcement or roof replacement may be necessary.

How can a roof deck look level and still drain?

The walking surface and waterproofing plane can follow different geometries. Sloped framing or tapered insulation directs the membrane toward drains, scuppers, or edges, while supports of different heights create a level walking surface above it.

Water passes through open joints and drains across the concealed membrane. A contractor case study illustrates this arrangement using tapered insulation, an EPDM membrane, and adjustable pedestal-mounted pavers, with the upper surface appearing level while water continues to drain beneath the removable finish.

Supports, trim, utilities, and debris must remain clear of the lower drainage path.

Do pavers or decking go directly on the roof membrane?

Usually not without an approved protection and support detail. Direct contact can introduce concentrated loads, abrasion, incompatibility, or blocked drainage.

Pedestal systems may use broad bases and compatible protection pads. Wood or composite panels may rest on protected sleepers aligned with drainage. Layers beneath the membrane may also need sufficient compressive strength to carry support reactions.

Written approval should address every contacting material, including pads, shims, sleepers, adhesives, trays, and cleaners.

Which waterproofing membrane is best for a walkable roof?

There is no universally best membrane category. PVC, EPDM, TPO, modified bitumen, built-up roofing, other sheet systems, and liquid-applied products can serve different assemblies.

Selection depends on:

Substrate and insulation arrangement
Exposed or protected service
Expected traffic
Climate and drainage
Available assembly depth
Seam and penetration complexity
Repair strategy
Compatibility with supports and finishes
Installer qualifications
Approvals and warranty terms

If the membrane will be the finish, verify explicit approval for both roofing and pedestrian use. If it will be protected, verify the complete support, load-distribution, access, and compatibility strategy.

How can drains and the membrane remain accessible after installation?

Design access before laying out the finish. Locate drains beneath lift-out pavers, removable panels, or deck sections rather than fixed framing. Use modular units that can be removed without cutting adjacent work.

Pedestal-supported finishes can allow individual units to be lifted for drain clearing, utility work, inspection, or local repair. Duradek’s pedestal-system guidance identifies this removability as a central feature of floating assemblies because it preserves maintenance access beneath the wear surface.

Mark concealed drains and utilities on as-built drawings, retain the required lifting tools, and open selected inspection points as part of the maintenance plan.

The Assembly-First Decision Rule

A successful flat roof deck begins with the roof, not the finish:

Verify structure and legal occupancy; preserve a continuous sloped drainage plane; select documented, compatible waterproofing; protect it with supports and finishes designed for the loads and exposure; engineer edges and penetrations; and keep drains and repair areas accessible.

Before choosing products, prepare a project brief covering intended use, anticipated loads, existing roof condition, vertical clearance, drainage, wind exposure, desired finish, and maintenance access. Take that brief to an architect, structural engineer, and qualified roofing or waterproofing professional so the complete assembly—not one isolated product—can be evaluated.
